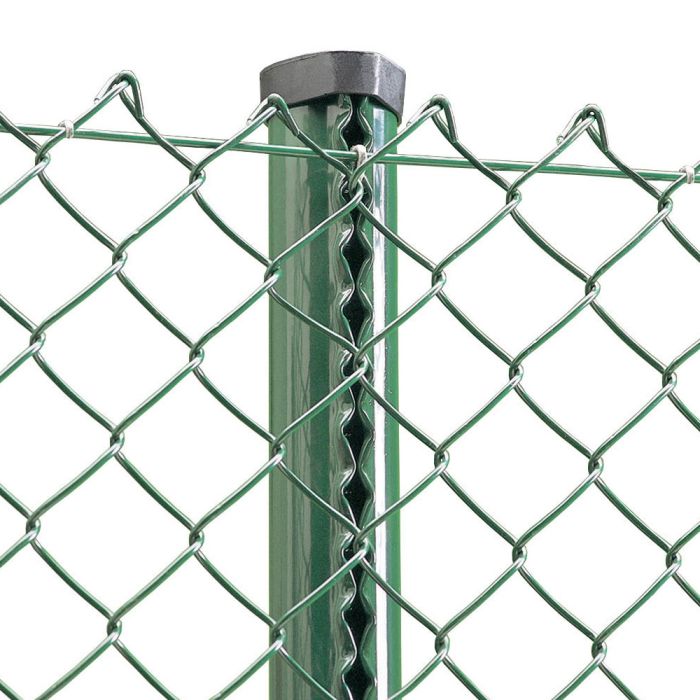

Chain Link Kit Three Sided Enclosure

Three sided enclosure 12.5m kit includes:

• 1 x 12.5m roll green PVC coated chain link fencing, with green PVC coated line wire;


• 2 x End Post (each End Post includes stretcher bar, strut, end brackets, winders, nuts and bolts, post cap);


• 2 x Corner Post (each Corner Post includes 2 x stretcher bar, 2 x strut, corner brackets, winders, nuts and bolts, post cap);


• 3 x Intermediate Post (includes post cap);


• 1 x FP20 single clip tool;


• 1 x pack 200 green hog rings.

Three sided enclosure 25m kit includes:

• 1 x 25m roll green PVC coated chain link fencing, with green PVC coated line wire;


• 2 x End Post (each End Post includes stretcher bar, strut, end brackets, winders, nuts and bolts, post cap);


• 2 x Corner Post (each Corner Post includes 2 x stretcher bar, 2 x strut, corner brackets, winders, nuts and bolts, post cap);


• 6 x Intermediate Post (includes post cap);


• 1 x FP20 single clip tool;


• 2 x pack 200 green hog rings (1 x pack supplied with 90cm (3ft) high kit).

Chain-link specification:

• Material: Mild Steel and PVC


• Finish: Galvanized core wire, green PVC coating


• Hole size: 50mm (2 inch)


• Wire thickness: 1.7mm / 2.5mm wire


• Weight per square metre: Approx. 995 grams

Post System specification:

• Material: Mild Steel


• Finish: Galvanized and green powder coated


• Post shape: Tubular


• Post diameter: 50mm


• Overall post length for 90cm high kit: 1.55m


• Overall post length for 120cm high kit: 1.8m


• Overall post length for 180cm high kit: 2.35m

All measurements +/- 15%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
