Woven Stainless Steel Mesh

Our woven stainless steel mesh provides a high level of protection against corrosion. We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

We carry huge stocks of woven mesh, available in a wide variety of hole sizes and wire thicknesses. The mesh count (2 Mesh, 3 Mesh, 4 Mesh etc.) refers to the number of holes across a linear inch on the material. The mesh is cut from the roll widths shown on the product page, and is priced per linear metre.

We offer a bulk cutting service and also a range of cut disc sizes. For cutting enquiries please call our sales team on 01782 820970.

Woven Stainless Steel Mesh
Shop By
Category
  1. Woven Stainless Steel Wire 2 Mesh 11mm Hole (1)

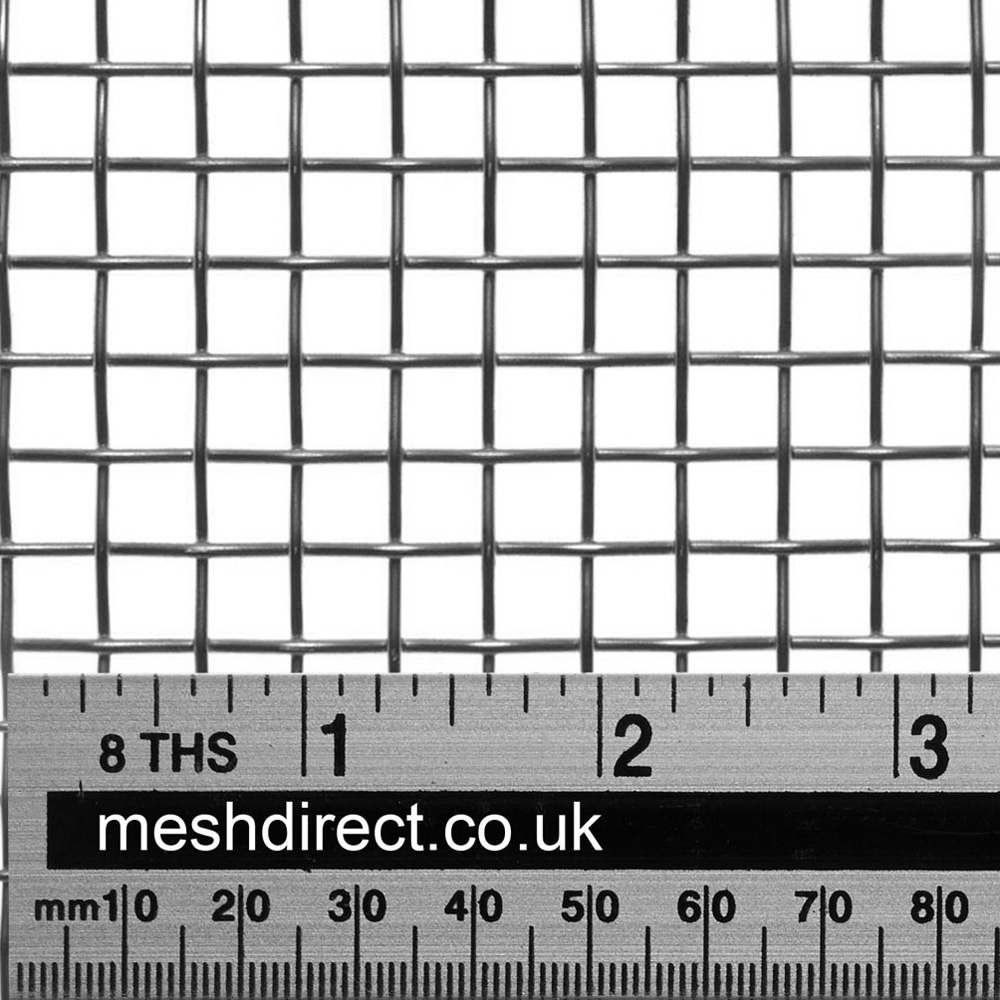

  2. Woven Stainless Steel Wire 3 Mesh 7.3mm Hole (1)
  3. Woven Stainless Steel Wire 3 Mesh 6.8mm Hole (1)

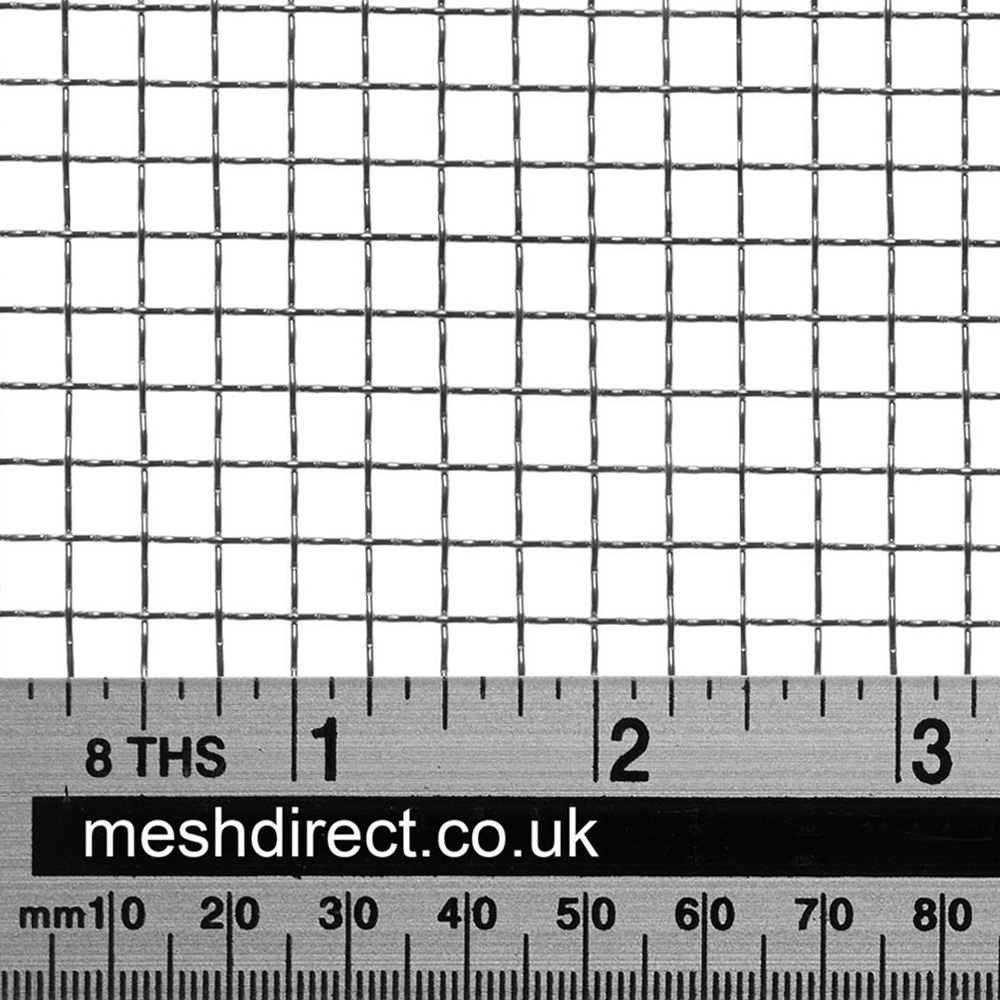

  4. Woven Stainless Steel Wire 4 Mesh 5.45mm Hole (1)
  5. Woven Stainless Steel Wire 4 Mesh 5mm Hole (1)
  6. Woven Stainless Steel Wire 5 Mesh 4.18mm Hole (1)
  7. Woven Stainless Steel Wire 6 Mesh 3.3mm Hole (1)
  8. Woven Stainless Steel Wire 8 Mesh 2.47mm Hole (1)
  9. Woven Stainless Steel Wire 10 Mesh 1.98mm Hole (1)
  10. Woven Stainless Steel Wire 12 Mesh 1.56mm & 1.62mm Hole (1)
  11. Woven Stainless Steel Wire 14 Mesh 1.31mm Hole (1)
  12. Woven Stainless Steel Wire 16 Mesh 1.2mm Hole (1)
  13. Woven Stainless Steel Wire 18 Mesh 0.96mm Hole (1)
  14. Woven Stainless Steel Wire 20 Mesh 0.9mm Hole (1)
  15. Woven Stainless Steel Wire 24 Mesh 0.7mm Hole (1)
  16. Woven Stainless Steel Wire 28 Mesh 0.55mm Hole (1)
  17. Woven Stainless Steel Wire 30 Mesh 0.57mm Hole (1)
  18. Woven Stainless Steel Wire 34 Mesh 0.5mm Hole (1)
  19. Woven Stainless Steel Wire 36 Mesh 0.46mm Hole (1)
  20. Woven Stainless Steel Wire 40 Mesh 0.4mm Hole (1)
  21. Woven Stainless Steel Wire 50 Mesh 0.32mm Hole (1)
  22. Woven Stainless Steel Wire 60 Mesh 0.26mm Hole (1)
  23. Woven Stainless Steel Wire 80 Mesh 0.18mm Hole (1)
  24. Woven Stainless Steel Wire 100 Mesh 0.15mm Hole (1)
  25. Woven Stainless Steel Wire 120 Mesh 0.12mm Hole (1)
  26. Woven Stainless Steel Wire 150 Mesh 0.1mm Hole (1)
  27. Woven Stainless Steel Wire 200 Mesh 0.07mm Hole (1)
  28. Woven Stainless Steel Wire 250 Mesh 0.062mm Hole (1)
  29. Woven Stainless Steel Wire 300 Mesh 0.055mm Hole (1)
  30. Woven Stainless Steel Wire 500 Mesh 0.026mm Hole (1)


    11mm hole size.

    1.6mm wire thickness.

    76.4% open area.

    7.3mm hole size.

    1.2mm wire thickness.

    73.7% open area.

    6.8mm hole size.

    1.6mm wire thickness.

    65.8% open area.

    5.45mm hole size.

    0.9mm wire thickness.

    73.7% open area.

    5mm hole size.

    1.2mm wire thickness.

    65.8% open area.

    54.18mm hole size.

    0.9mm wire thickness.

    67.7% open area.

    3.3mm hole size.

    0.9mm wire thickness.

    62% open area.

    2.47mm hole size.

    0.71mm wire thickness.

    60.3% open area.

    1.98mm hole size.

    0.559mm wire thickness.

    60.8% open area.

    1.31mm hole size.

    0.5mm wire thickness.

    52.48% open area.

    1.2mm hole size.

    0.355mm wire thickness.

    60.28% open area.

    0.96mm hole size.

    0.455mm wire thickness.

    46.39% open area.

    0.9mm hole size.

    0.355mm wire thickness.

    51.9% open area.

    0.7mm hole size.

    0.355mm wire thickness.

    44.16% open area.

    0.55mm hole size.

    0.355mm wire thickness.

    37.05% open area.

    0.57mm hole size.

    0.28mm wire thickness.

    44.8% open area.

    0.5mm hole size.

    0.25mm wire thickness.

    44.27% open area.

    0.46mm hole size.

    0.25mm wire thickness.

    41.69% open area.

    0.4mm hole size.

    0.233mm wire thickness.

    40% open area.

    0.32mm hole size.

    0.19mm wire thickness.

    39.19% open area.

    0.26mm hole size.

    0.16mm wire thickness.

    38.7% open area.

    0.18mm hole size.

    0.14mm wire thickness.

    31.3% open area.

    0.15mm hole size.

    0.10mm wire thickness.

    36.76% open area.

    0.12mm hole size.

    0.09mm wire thickness.

    33.04% open area.

    0.1mm hole size.

    0.065mm wire thickness.

    37.96% open area.

    0.07mm hole size.

    0.05mm wire thickness.

    36.76% open area.

    0.062mm hole size.

    0.04mm wire thickness.

    36% open area.

    0.055mm hole size.

    0.03mm wire thickness.

    41.69% open area.

    0.026mm hole size.

    0.025mm wire thickness.

    26.2% open area.

Our woven stainless steel mesh provides a high level of protection against corrosion. We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

We carry huge stocks of woven mesh, available in a wide variety of hole sizes and wire thicknesses. The mesh count (2 Mesh, 3 Mesh, 4 Mesh etc.) refers to the number of holes across a linear inch on the material. The mesh is cut from the roll widths shown on the product page, and is priced per linear metre.

We offer a bulk cutting service and also a range of cut disc sizes. For cutting enquiries please call our sales team on 01782 820970.
