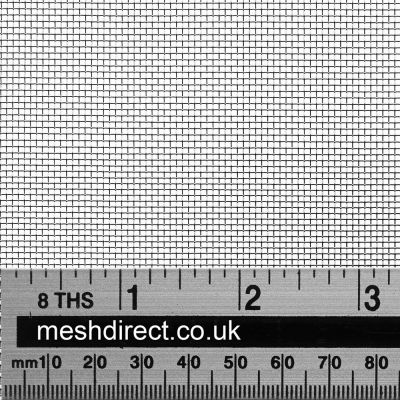

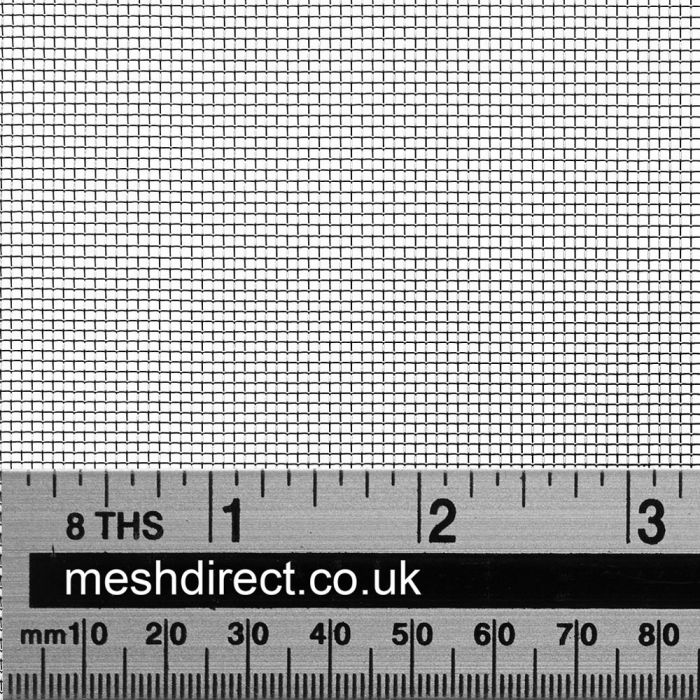

Woven Stainless Wire Cloth 20 mesh - 0.9 mm aperture

Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 20 mesh has a 0.9mm hole size and 0.355mm thick wire. Manufactured in accordance with ISO 9001:2015.

Full Details & Specification

Woven Stainless Wire Cloth 20 mesh - 0.9 mm aperture

From £9.99 inc VAT

Rating:
100% of 100
In stock

Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 20 mesh has a 0.9mm hole size and 0.355mm thick wire. Manufactured in accordance with ISO 9001:2015.

Full Details & Specification
Need help from our team? Click here
Grouped product items
Size Price Qty

Grade 304 Stainless Steel, Width 1.22m (4ft)

Grade 304 Stainless, 1.22 metre wide roll (sold per metre)

Code: 304-SW20

More info Less info

Our woven 20 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity.

  • £31.00
    6%
Our Price £32.90 inc VAT

498 IN STOCK

Grade 316 Stainless Steel, Width 1.22m (4ft)

Grade 316 Stainless, 1.22 metre wide roll (sold per metre)

Code: 316-SW20

More info Less info

Our woven 20 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity. Grade 316 stainless steel has a higher resistance to corrosion.

Our Price £41.90 inc VAT

265 IN STOCK

10" Heavy-duty Scissors For Cutting Wire Up To 0.5mm Thick

Heavy-duty Scissors for Woven Mesh

Code: FIN-225

More info Less info

These German made 10" scissors have ice-hardened steel blades which are ideal for cutting woven mesh with a wire diameter up to 0.5mm thick.

Our Price £39.99 inc VAT

233 IN STOCK

Sample Sizes, £1.99 Delivery To UK Mainland (sold By Sample Size)

Large Sample 300mm x 200mm (A4 sized)

Code: 20mesh-A4

More info Less info

This is a large sample of the woven mesh (approximate size 300mm x 200mm). £1.99 delivery to UK Mainland.

Our Price £9.99 inc VAT

26 IN STOCK

Description

Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Woven 20 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity.

The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 20 Mesh would have 20 holes per linear inch.

We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment. Please note that from time to time we may substitute grade 304 stainless steel for the higher quality grade 316 stainless steel (unless we are requested not to do so). Samples are supplied from off-cuts of the woven mesh, and so may alternate between Grade 304 and Grade 316 stainless steel.

The material is priced per linear metre on the website.

Specification

Specification for 0.9mm hole size option:

  • Woven 20 Mesh
  • Standard Wire Gauge 28
  • Wire thickness 0.355 mm
  • Aperture (hole size) 0.915 mm
  • Open area 51.9%
  • 915 microns
  • Weight per square metre 1.26kg
  • Woven Stainless Steel, Grade 304 and Grade 316 available
  • Manufactured in accordance with ISO 9001:2015
  • Please click on the following links for a pdf Data Sheet: Grade 304 Data Sheet ; Grade 316 Data Sheet

All measurements +/- 5%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
