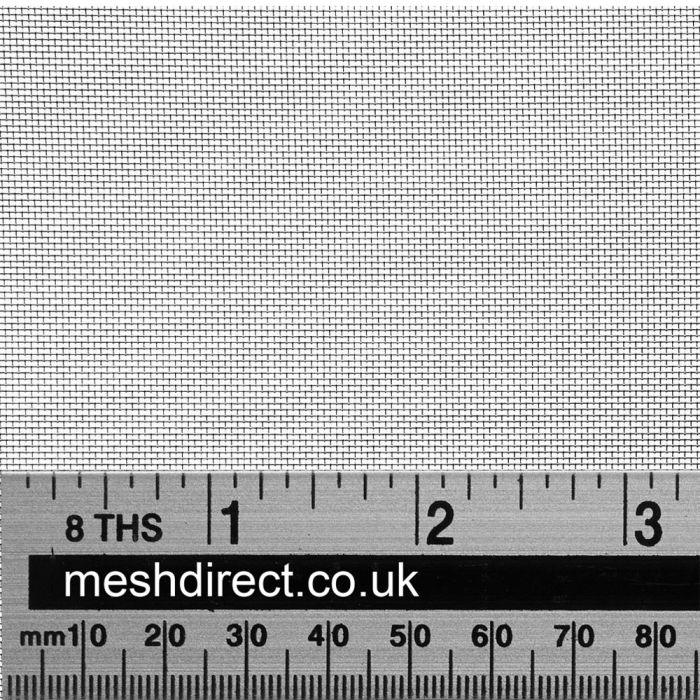

Woven Stainless Wire Cloth 34 mesh - 0.5 mm aperture
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 34 mesh has a 0.5mm hole size and 0.25mm thick wire. Manufactured in accordance with ISO 9001:2015.
Woven Stainless Wire Cloth 34 mesh - 0.5 mm aperture
From £9.99 inc VAT
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 34 mesh has a 0.5mm hole size and 0.25mm thick wire. Manufactured in accordance with ISO 9001:2015.
Size | Price | Qty | |
---|---|---|---|
Grade 304 Stainless Steel, Width 1m (3ft 4 Inch) |
|||
Grade 304 Stainless, 1 metre wide roll (sold per metre)
Code: 304-SW34-1m More info Less info Our woven 34 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity. |
Our price
£24.99
inc VAT
|
||
Grade 304 Stainless Steel, Width 1.22m (4ft) |
|||
Grade 304 Stainless, 1.22 metre wide roll (sold per metre)
Code: 304-SW34-1.2 More info Less info Our woven 34 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity. |
Our price
£28.99
inc VAT
|
||
Grade 316 Stainless Steel, Width 1.2m (4ft) |
|||
Grade 316 Stainless, 1.22 metre wide roll (sold per metre)
Code: 316-SW34 More info Less info Our woven 34 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity. Grade 316 stainless steel has a higher resistance to corrosion. |
Our price
£39.99
inc VAT
|
||
10" Heavy-duty Scissors For Cutting Wire Up To 0.5mm Thick |
|||
Heavy-duty Scissors for Woven Mesh
Code: FIN-225 More info Less info These German made 10" scissors have ice-hardened steel blades which are ideal for cutting woven mesh with a wire diameter up to 0.5mm thick. |
Our price
£39.99
inc VAT
|
||
Sample Sizes, £1.99 Delivery To UK Mainland (sold By Sample Size) |
|||
Large Sample 300mm x 200mm (A4 sized)
Code: 34mesh-A4 More info Less info This is a large sample of the woven mesh (approximate size 300mm x 200mm). £1.99 delivery to UK Mainland. |
Our price
£9.99
inc VAT
|
Description
Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Woven 34 Mesh is a fine mesh with a small hole size. Given that the material is flexible, it may need the support of a frame to add rigidity.
The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 34 Mesh would have 34 holes per linear inch.
This mesh is available in either grade 304 or our higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.
The material is priced per linear metre on the website.
Specification
- Woven 34 Mesh
- Standard Wire Gauge 33
- Wire thickness 0.25 mm
- Aperture (hole size) 0.5 mm
- Open area 44.27%
- 500 microns
- Weight per square metre 1.06kg
- Woven Stainless Steel, Grade 304 and Grade 316 available
- Manufactured in accordance with ISO 9001:2015
- Please click on the following links for a pdf Data Sheet: Grade 304 Data Sheet ; Grade 316 Data Sheet
All measurements +/- 5%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
