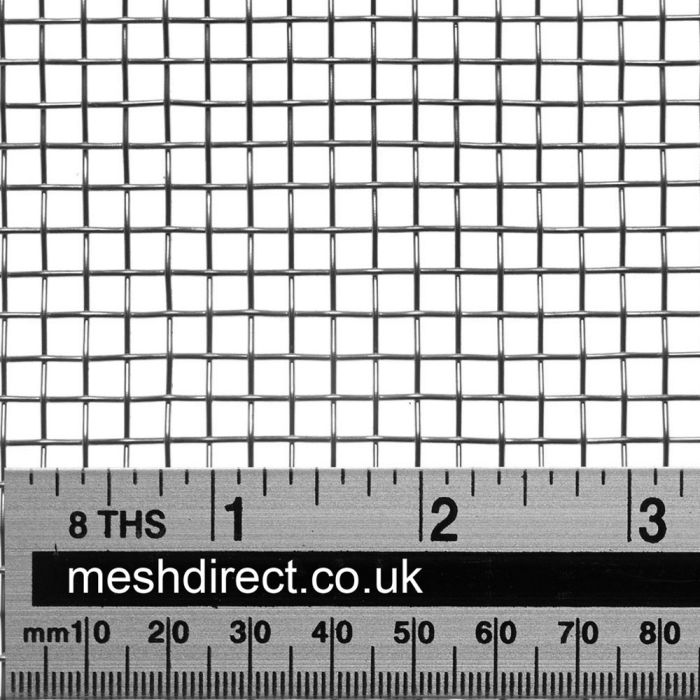

Woven Stainless Wire Cloth 5 mesh - 4.18 mm aperture

Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 5 mesh has a 4.18mm hole size and 0.9mm thick wire. Manufactured in accordance with ISO 9001:2015. Our heavier woven mesh may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available.

Full Details & Specification

Woven Stainless Wire Cloth 5 mesh - 4.18 mm aperture

From £11.99 inc VAT

Rating:
100% of 100
In stock

Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 5 mesh has a 4.18mm hole size and 0.9mm thick wire. Manufactured in accordance with ISO 9001:2015. Our heavier woven mesh may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available.

Full Details & Specification
Need help from our team? Click here
Grouped product items
Size Price Qty

Grade 304 Stainless Steel, Width 1.22m (4ft)

Grade 304 Stainless, 1.22 metre wide roll (sold per metre)

Code: 304-SW5

More info Less info

Our woven 5 Mesh is a reasonably rigid mesh. Although the mesh is manufactured on a roll, it is more mesh-like than cloth-like. This woven mesh is a good option for rodent protection against both rats and mice. Our heavier woven meshes may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available.

  • £37.99
    5%
Our Price £39.99 inc VAT

132 IN STOCK

Grade 316L Stainless Steel, Width 1.22m (4ft)

Grade 316L Stainless, 1.22 metre wide roll (sold per metre)

Code: 316-SW5

More info Less info

Our woven 5 Mesh is a reasonably rigid mesh. Although the mesh is manufactured on a roll, it is more mesh-like than cloth-like. This woven mesh is a good option for rodent protection against both rats and mice. Grade 316L is the low carbon variant of Grade 316 stainless steel. Grade 316 has a higher resistance to corrosion. Our heavier woven meshes may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available.

  • £52.00
    5%
Our Price £55.00 inc VAT

70 IN STOCK

Sample Sizes, £1.99 Delivery To UK Mainland (sold By Sample Size)

Large Sample 300mm x 200mm (A4 sized)

Code: 5mesh-A4

More info Less info

This is a large sample of the woven mesh (approximate size 300mm x 200mm). £1.99 delivery to UK Mainland.

Our Price £11.99 inc VAT

37 IN STOCK

Description

Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Our woven 5 Mesh is manufactured on a roll, however it is more mesh-like than cloth-like. This woven mesh is a good option for rodent protection against both rats and mice.

The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 5 Mesh would have 5 holes per linear inch.

We can offer either standard grade 304 stainless steel, or the higher quality grade 316L stainless steel (sometimes called Marine Grade). Grade 316L is the low carbon variant of Grade 316 stainless steel, which contains molybdenum to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment. The low carbon variant is the preferred option for welding applications.

Please note that from time to time we may substitute grade 304 stainless steel for the higher quality grade 316L stainless steel (unless we are requested not to do so). Also, our heavier woven mesh may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available. Samples are supplied from off-cuts of the woven mesh, and so may alternate between Grade 304 and Grade 316 stainless steel.

The material is priced per linear metre on the website.

Specification

  • Woven 5 Mesh
  • Standard Wire Gauge 20
  • Wire thickness 0.9 mm
  • Aperture (hole size) 4.18 mm
  • Open area 67.7%
  • 4180 microns
  • Weight per square metre 2.02kg
  • Woven Stainless Steel, Grade 304 and Grade 316L available
  • Manufactured in accordance with ISO 9001:2015
  • Please click on the following links for a pdf Data Sheet: Grade 304 Data Sheet ; Grade 316 Data Sheet

All measurements +/- 5%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
